Series AEL Automatic Expansion Valves with fixed orifice and adjustable evaporating pressure
Automatic expansion valves (constant pressure valves) series AEL are used in general refrigeration and for original equipment. For plants with single injected evaporators and without a distributor, such as air conditioners, dehumidifiers, air driers, water coolers or ice-making machines.

• Smallest dimensions
• High performance
• Hermetic construction
• Adjustable evaporating pressure setting
• Extreme durable due to stainless steel head and stainless steel diaphragm welded using protective gas
• Maximum pressure PS 25.5 bar(a)
• Maximum test pressure PF 28 bar(a)
• Special versions (bypass, other refrigerants, etc.) on request

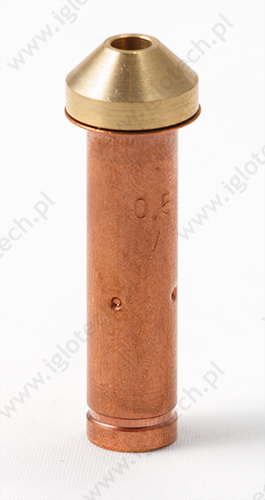

Orifice solid built-in
Connections solder
Pressure equalizer internal
Balanced port no
Brass parts body
Stainless steel parts internals, head
Copper parts connection tube
Max. ambient temperature 100 oC
Thermal charge All CFC, HCFC, HFC, not for ammonia.
Factory setting 2,2 bar
