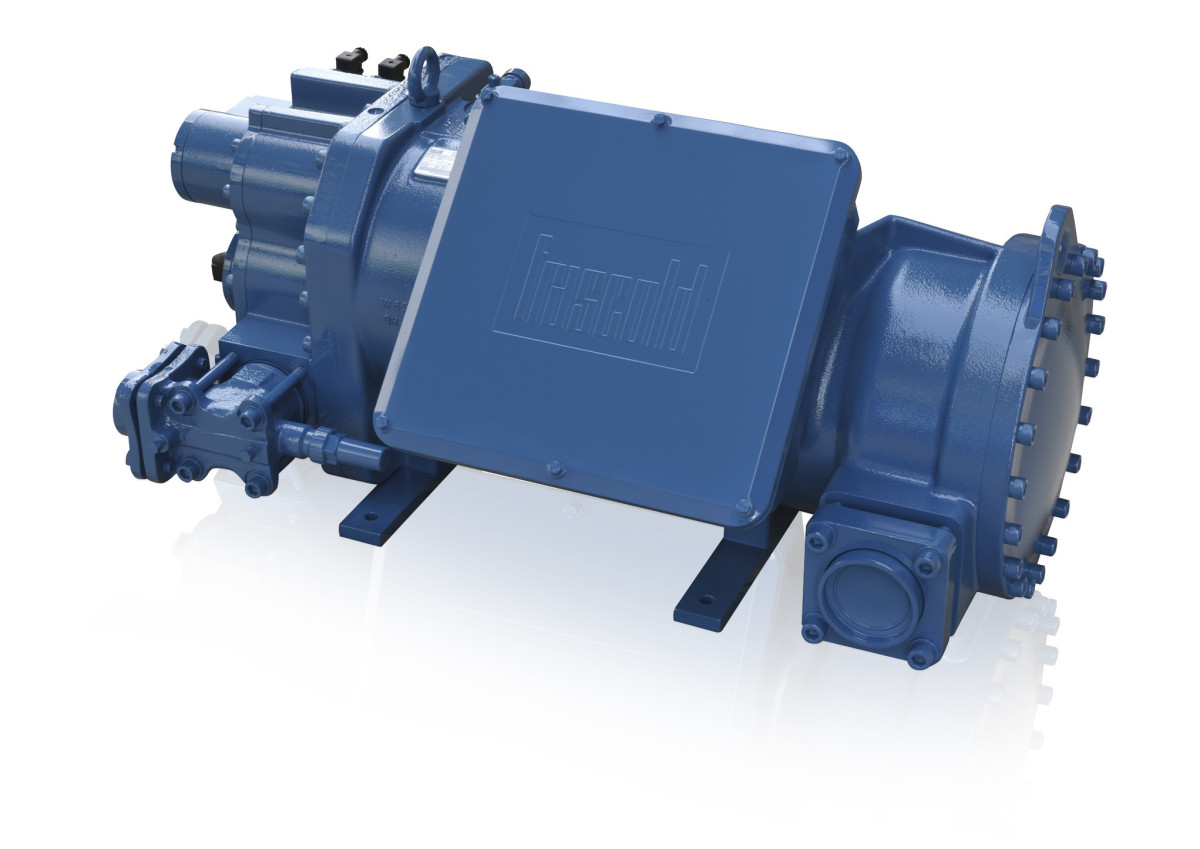

FRASCOLD NRH SCHROEFCOMPRESSOR

salesteam@ziggo.nl
FRASCOLD NRH SCREWCOMPRESSOR VERDICHTER COMPRESSEUR SCHROEFCOMPRESSOR
0224-850552
06-52634163

Standard:
twin screw compressor with integrated part winding start (PWS) electric motor and ptc probes connected to the protection system.
•PWS (Y/YY) = 50Hz/380-420V/3Ph (60Hz/440-480V/3Ph)
•DOL (YY) = 50Hz/380-420V/3Ph (60Hz/440-480V/3Ph)
- electronic monitoring and protection module (temp0erature, phase sequence, rotation direction)
- suction and discharge valves
- Oil water cooling
- Integrated check valve
- capacity control and idle start system
- IP56 electrical connections box
- discharge temperature control sensor
- oil injection kit (control module, oil filter, flow meter, solenoid valve, glass sight)
- rubber supports
- protection charge (inert gas 1 bar)
- appropriate packaging for transport, handling and storage

Options:
- electric motors for various voltage supply values
- ECO connection kit or liquid injection
- differential pressure switch for (electronic) oil filter clogging
- differential pressure switch for (optical) oil filter clogging
- DOL connection bars
- oil separator kit (separator, thermostat, heating elements, level control)
- Air oil cooler
- Water oil coller
- lubricating oil
