FRASCOLD W75 W80 AXY ATEX COMPRESSORS

salesteam@ziggo.nl
FRASCOLD W75 W80 AXY ATEX COMPRESSOR VERDICHTER COMPRESSEUR
0224-850552
06-52634163

Standard

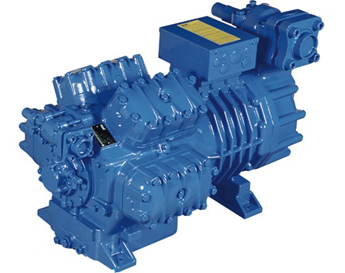

8 cylinder compressor with integrated part winding start (PWS) electric motor and ptc probes connected to the protection and diagnosis system
Designed and manufactured in compliance with the safety requirements of the 94/9/CE ATEX directive. Suitable for use in environments with possible random presence of flammable gases in the atmosphere,
Available in three different versions
AXH for operation with hydrocarbons [R290, R1270, R600, etc.].
PAG lubricating oil charge
AXY for operation with HFC, HCFC, HFO refrigerants.
POE lubricating oil charge
AXE ECOinside build optimized for operation with R134a and HFO [R1234ze,R1234yf, etc.] refrigerants
POE type oil charge

•PWS (Y/YY) = 50Hz/380-420V/3Ph (60Hz/440-480V/3Ph)
•DOL (YY) = 50Hz/380-420V/3Ph (60Hz/440-480V/3Ph)
- Diagnose electronic module for monitoring, protection diagnostics and communication.
- suction and discharge valves
- IP56 electrical connections box
- discharge temperature control sensor
- reversible oil pump
- electronic pressure switch for lubrication monitoring
- POE68 oil load
- 2 oil sight glasses for visual checks or connection to automatic mechanical and electric devices/regulators
- rubber supports
- protection charge (inert gas 1 bar)
- appropriate packaging for transport, handling and storage

Options:
- electric motors for various voltage supply values
- oil heating resistors
- motor far for additional cooling
- head with idle start system
- head with RSH system for capacity control
- head with RSH system for capacity control
- oil level electronic regulator
- opto-electronic oil level control
- flange+valve kit for aligned assembly
