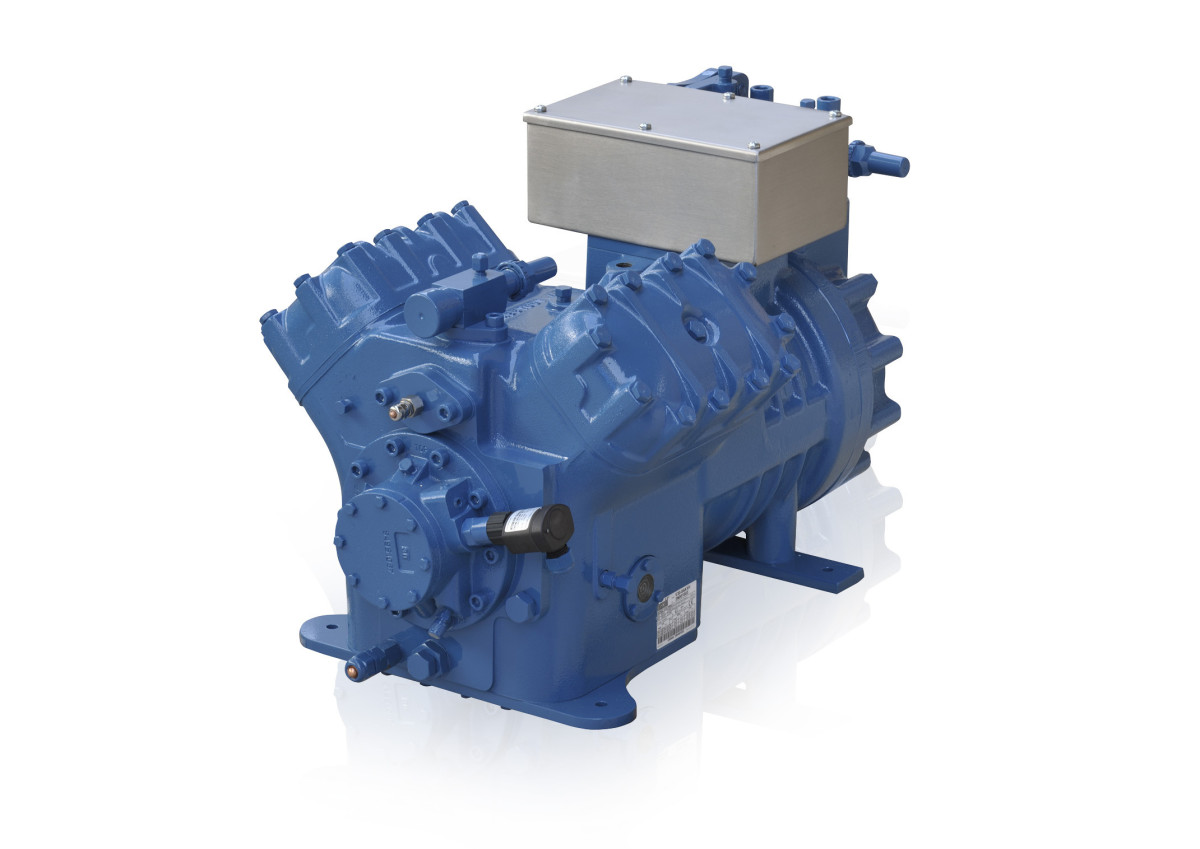

FRASCOLD D2 AXY ATEX COMPRESSORS

salesteam@ziggo.nl
FRASCOLD D2 AXY ATEX COMPRESSOR VERDICHTER COMPRESSEUR
0224-850552
06-52634163

Standard
Compressor with integrated direct on line (DOL) motor and ptc probes connected to the protection system
Designed and manufactured in compliance with the safety requirements of the 94/9/CE ATEX directive. Suitable for use in environments with possible random presence of flammable gases in the atmosphere,
Available in three different versions
AXH for operation with hydrocarbons [R290, R1270, R600, etc.].
PAG lubricating oil charge
AXY for operation with HFC, HCFC, HFO refrigerants.
POE lubricating oil charge
AXE ECOinside build optimized for operation with R134a and HFO [R1234ze,R1234yf, etc.] refrigerants
POE type oil charge
•? = 50Hz/220-240V/3Ph (60Hz/265-290V/3Ph)
•Y = 50Hz/380-420V/3Ph (60Hz/440-480V/3Ph)
- motor monitoring and protection electronic module
- suction and discharge valves
- IP56 electrical connections box
- POE32 oil load
- oil sight glass for visual checks or connection to automatic mechanical and electric devices/regulators
- rubber supports
- protection charge (inert gas 1 bar)
- appropriate packaging for transport, handling and storage

Options:
- electric motors for various voltage supply values
- oil heating resistors
- motor far for additional cooling
- head with RSH system for capacity control
- oil level electronic regulator
- flange+valve kit for aligned assembly
