Standard

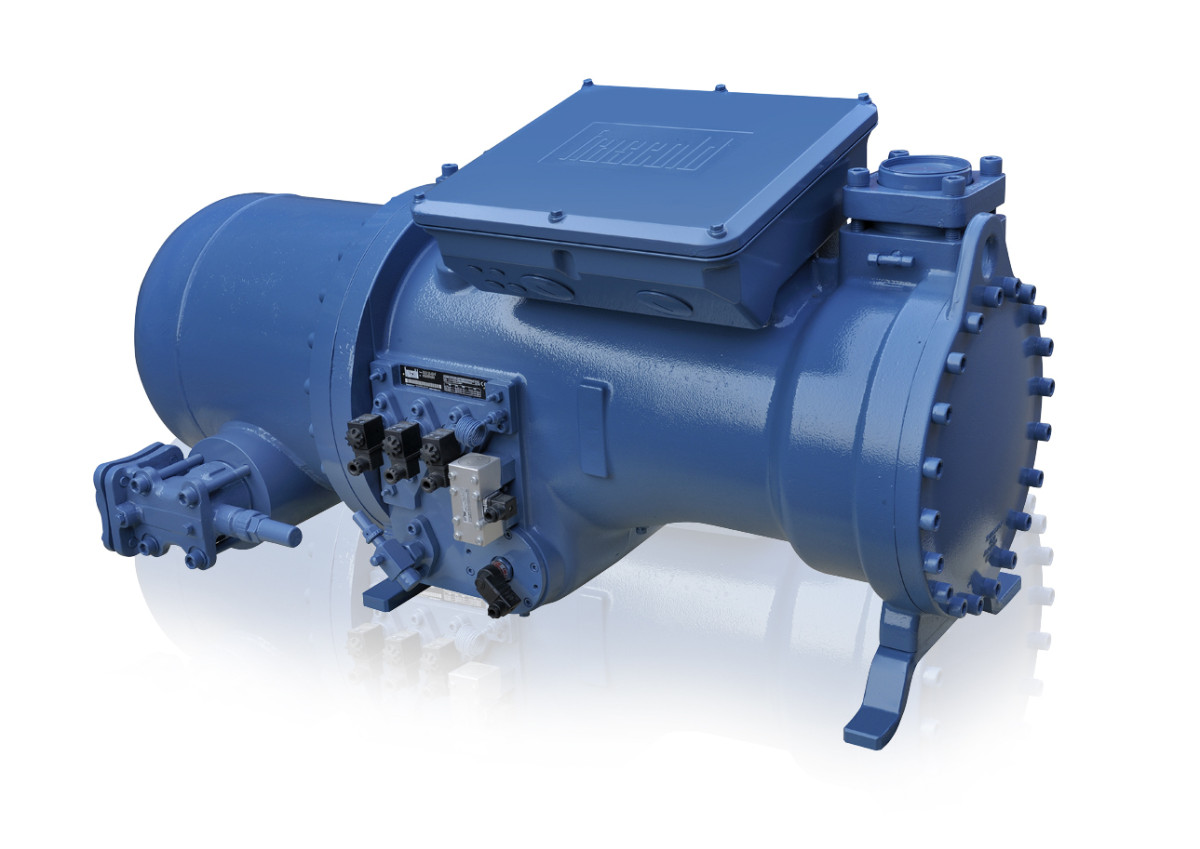

twin screw compressor with integrated part winding start (PWS) electric motor and ptc probes connected to the protection system.
- electronic monitoring and protection module (temp0erature, phase sequence, rotation direction)
- discharge and connection valves to be welded on the suction side
- Oil water cooling
- Integrated check valve
- capacity control and idle start system
- IP56 electrical connections box
- discharge temperature control sensor
- Motor cooling by means of suction gas
- POE170 oil load
- integrated oil filter
- oil heating resistors
- 2 oil sight glasses for visual checks.
- oil service tap
- protection charge (inert gas 1 bar)
- appropriate packaging for transport, handling and storage
•PWS (Y/YY) = 50Hz/380-420V/3Ph (60Hz/440-480V/3Ph)
•DOL (YY) = 50Hz/380-420V/3Ph (60Hz/440-480V/3Ph)

Option
- electric motors for various voltage supply values
- ECO connection kit or liquid injection
- differential pressure switch for (electronic) oil filter clogging
- differential pressure switch for (optical) oil filter clogging
- remote oil cooler connection kit
- DOL connection bars
- rubber supports
- suction valves
