DANFOSS MBT9110 TEMPERATUURSENSOR

salesteam@ziggo.nl
DANFOSS MBT-9110 TEMPERATURE TRANSMITTER
0224-850552
06-52634163

MBT-9110 -10/40 gr. C 084Z8116

MBT-9110 temperatuuromvormer 084Z8117
*Specificaties

MBT-9110 -10/150 gr. C 084Z8118
*Specificaties

MBT-9110 0/2500 gr. C 084Z8119
*Specificaties

MBT-9110 0/150 gr. C 084Z8121
*Specificaties

The MBT 9110 temperature transmitter can be used for converting the Pt100 ohm signal or the thermo couple mV signal to a 4 to 20 mA signal. The MBT 9110 can be used together with all types of MBT sensors, Pt100 as well as Thermo couple.

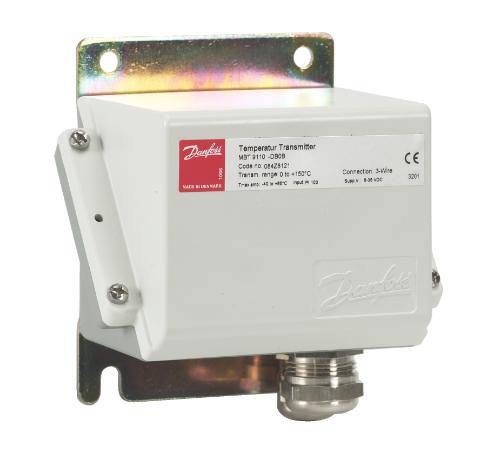

MBT 9110 transmitters in the standard program are delivered in an enclosure, but are also used as an integrated part of certain temperature sensors.
The transmitter is available as standard or galvanic isolated with or without EEx approval. •2, 3 or 4-wire universal transmitter for industrial and marine applications.

•Pt100 or thermocouple input
•4 - 20 mA standard output signal - with or without galvanic isolation
•Available with EEX ia IIC T4 / T6 approvals

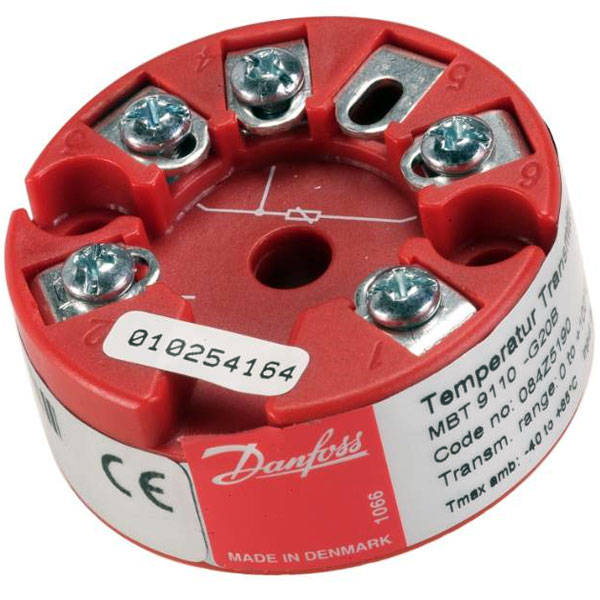

•For mounting in DIN B connection head or in a separate enclosure
•Advanced sensor fault indication
•Temperature linearized
•Available with all relevant marine approvals

The MBT 9110 temperature transmitter can be used for converting the Pt 100 / Pt 1000 ohm signal or the thermo couple mV signal to a 4 – 20 mA signal.

The MBT 9110 is a very durable and reliable temperature transmitter with all major marine approvals and can be used together with all our sensors based on Pt or Thermocouple technology.

MBT 9110 transmitters in the standard program are delivered in an enclosure, but are also used as an integrated part of certain temperature sensors. The transmitter is available as standard or galvanic isolated with or without EEx approval.

Features

•2-wire universal transmitter for industrial and maritime applications
•Pt 100, Pt 1000 or thermocouple input
•4 – 20 mA standard output - with or without galvanic isolation
•For mounting in DIN B connection head, heightened lid or in a separate enclosure
•Advanced sensor fault indication
•Temperature linearized

Approvals

•Lloyds Register of Shipping, LR
•Germanischer Lloyd, GL
•Det Norske Veritas, DNV
•Nippon Kaiji Kyokai, NKK
•China Classification Society, CCS
•Bureau Veritas, BV
