DANFOSS MBT5113 UITLAATGAS TEMPERATUURSENSOR

salesteam@ziggo.nl
DANFOSS MBT-5113 EXHAUST TEMPERATURE PROBE
0224-850552
06-52634163

MBT-5113 G3/4 A 100 mm 084Z5052
*Specificaties

MBT-5113 G3/4 A 150 mm 084Z5274

MBT-5113 G3/4 A 200 mm 084Z5248
*Specificaties

MBT-5113 G3/4 A 250 mm 084Z5275
*Specificaties

MBT-5113 G3/4 A 100 mm 084Z5276
*Specificaties

MBT-5113 G3/4 A 150 mm 084Z5257
*Specificaties

MBT-5113 G3/4 A 200 mm 084Z5277
*Specificaties

MBT-5113 G3/4 A 250 mm 084Z5278
*Specificaties

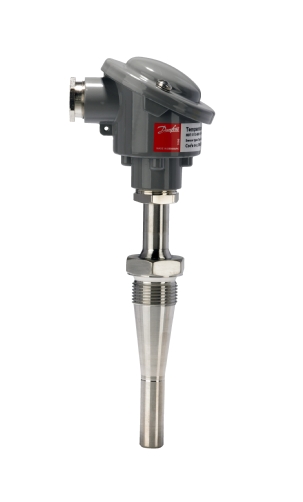

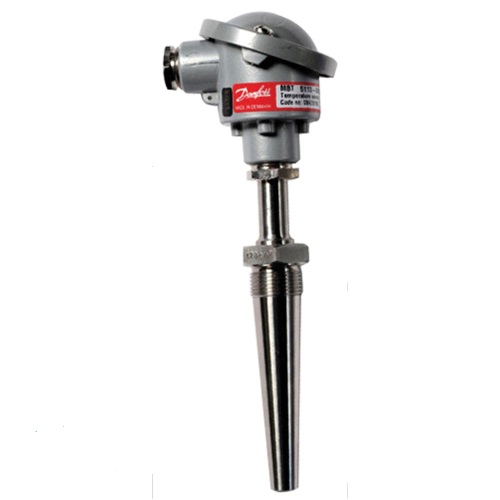

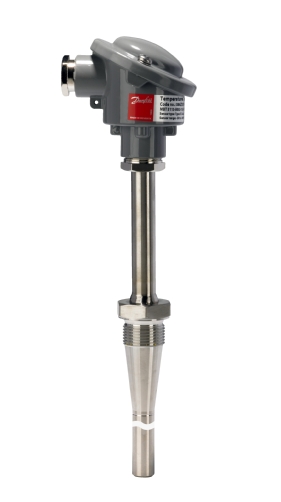

The MBT 5113 is a heavy-duty temperature sensor that can be used for measuring and regulating exhaust gas from diesel engines, turbines and compressors within stationary and marine applications.
This temperature sensor is based on a type K thermo couple, which measures temperatures up to 800 °C. The measuring insert can be changed even while operating the application.
All parts in contact with the media are made of stainless steel AISI 316 Ti. The sensor is delivered with B-head as standard and, if needed, a transmitter (MBT 9110) can be ordered as an integrated part of the sensor.
•With thermocouple up to 800° C media temperature
•Available with built-in transmitter - with or without Eex ia IIC T4/T6 approval
•Available with all relevant marine approvals
