Mitsubishi FDUM100VF spareparts

Mitsubishi FDUM100VF spareparts

Mitsubishi FDUM100VF

Mitsubishi FDUM100VF

PARTNAME

PARTNUMBER

PARTNAME

PARTNUMBER

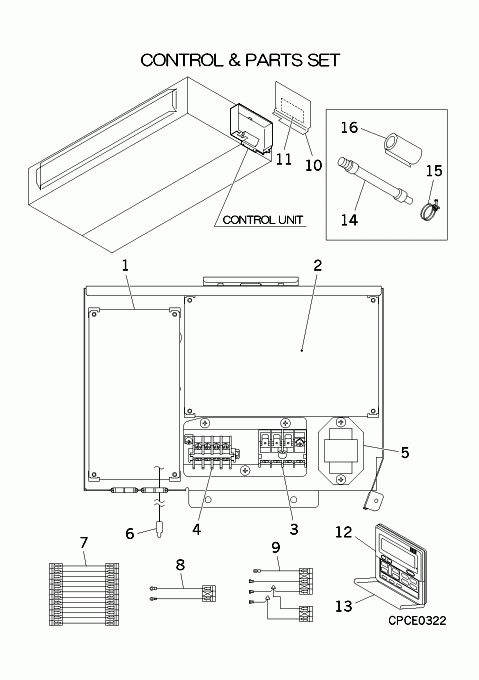

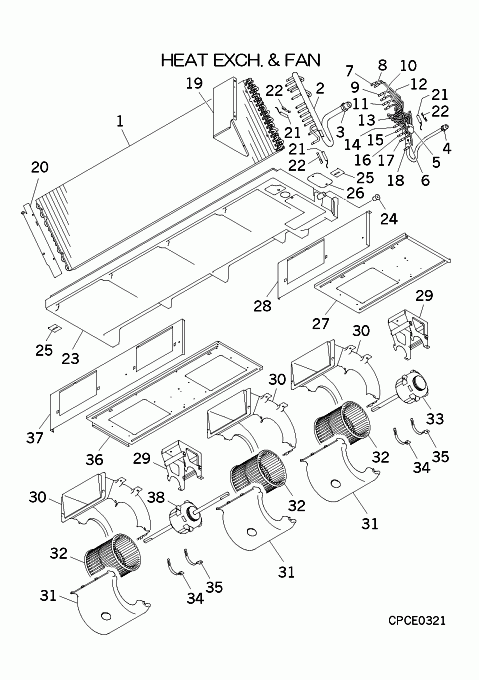

1-9 CONTROL UNIT  PJG501A001BN  1-22 HEAT EXCH ASSY(AIR  PJG301A002
1 PWB ASSY(CONTROL)  PJA505A228B  1 HEAT EXCH(AIR)  PJG311A002
2 PWB ASSY(POWER)  PJA505A231AA  1-3 HEADER ASSY,GAS  PJG315D001
3 BLOCK,TERMINAL  SSA561B702  3 UNION,SOLDER  SSA323F012C
4 BLOCK,TERMINAL  SSA561B720A  4-18 DISTRIBUTOR ASSY  PJG315A004
5 REACTOR  SSA554B104  4 UNION(SLD)  SSA323F088
6 SENSOR ASSY  PSA551A004CG  5-18 DISTRIBUTOR ASSY  PJG315A005
7 WIRING(PWB)  PJG504A001  5 DISTRIBUTOR  PJG315A001B
8 WIRING(TB,XY)  PJF504A006C  6 STRAINER  SSA357A051
9 WIRING(TB,POWER)  PJG504A002  7 CAPILLARY  PJG315B002
10 LID ASSY,CONTROL B  PJG142A003  8 CAPILLARY  PJG315B002A
11 LABEL,WIRING  PJG011G001  9 CAPILLARY  PJG315B002B
12-13 CONTROL ASSY,REMOT  PJA502A800BC  10 CAPILLARY  PJG315B002C
13 COVER  PJA129A708  11 CAPILLARY  PJG315B002D
14-16 PARTS SET  PJF008A001D  12 CAPILLARY  PJG315B002F
14 HOSE,DRAIN  SSA423A101  13 CAPILLARY  PJG315B002G
15 HOSE CLAMP  V300Y38  14 CAPILLARY  PJG315B002H
16 INSULATION,PIPE  SSA153B016BA  15 CAPILLARY  PJG315B002J
17 LABEL,MODEL NAME  PJG011F001L  16 CAPILLARY  PJG315B002K
17 CAPILLARY  PJG315B002L
18 CAPILLARY  PJG315B002M
19 PLATE,BAFFLE(R)  PJG141A001
20 PLATE,BAFFLE(L)  PJG141A002
21 SENSOR ASSY(TEMP)  PJF551A002J
22 SPRING,LEAF  PSA941F001
23-24 PAN ASSY,DRAIN  PJG454A003
24 PLUG  SSA326A003F
25 BRACKET(PAN)  PJG116A009
26 LID ASSY(DRAIN)  PJG142A006
27 PLATE(BASE,FAN)  PJG119A004
28 PLATE,FAN  PJG119A005
29 BRACKET ASSY(MOTOR  PJG116A001B
30 CASING(U)  PJG433B001
31 CASING(L)  PJG433B002
32 IMPELLER  SSA431D093
33 MOTOR,DC  SSA512T108
34 BRACKET(MOTOR)  PFA116A207G
35 BRACKET(MOTOR)  PFA116A207H
36 PLATE(BASE,FAN)  PJG119A004A
37 PLATE,FAN  PJG119A005A
38 MOTOR,DC  SSA512T109

Mitsubishi FDUM100VF spareparts

Mitsubishi FDUM100VF

PARTNAME

PARTNUMBER

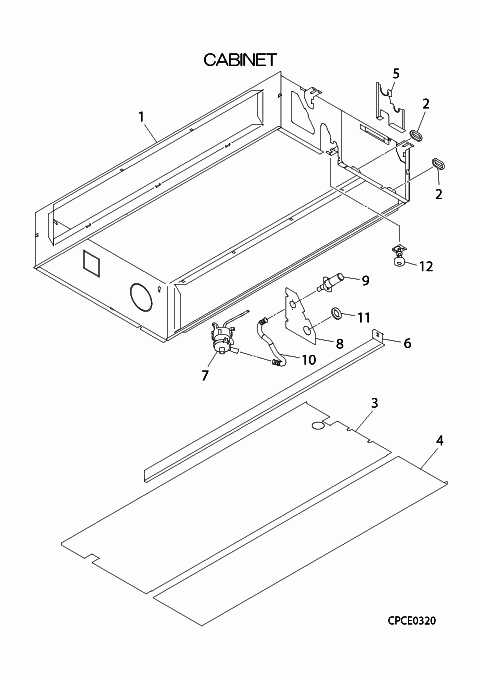

1-2 CABINET ASSY  PJG100A001B
2 GROMMET  SSA947B120
3 PLATE ASSY,BOTTOM(  PJG111A001B
4 PLATE ASSY,BOTTOM(  PJG111A003B
5 LID ASSY  PJG132A005
6 STIFFENER(BOTTOM)  PJG115A002B
7-11 PUMP ASSY,DRAIN  PJG451A002
7 PUMP,DRAIN  SSA451A009
8 LID(PUMP)  PJG132A002
9 SOCKET  SSA422C088
10 HOSE,DRAIN  SSA423A110
11 GROMMET  S751W30
12 SWITCH,FLOAT  SSA536A030
13 HOSE,DRAIN  SSA423A101
14 HOSE CLAMP  V300Y38
