Click on drawing to enlarge


	Mitsubishi FDEN100VF			Mitsubishi FDEN100VF
	PARTNAME	PARTNUMBER		PARTNAME	PARTNUMBER

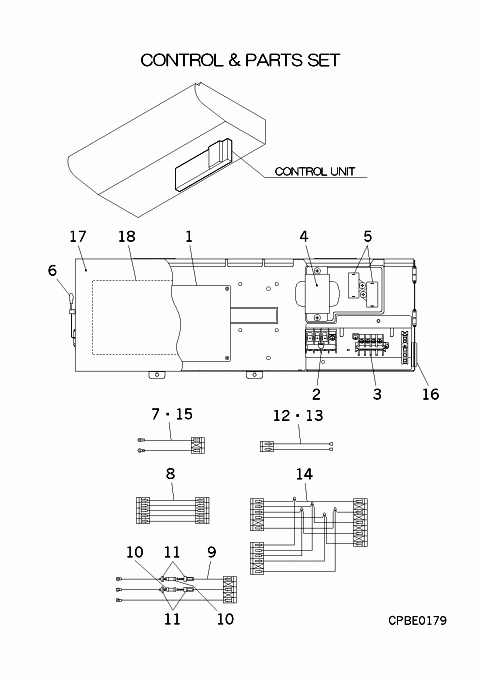

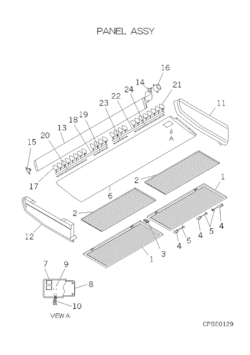

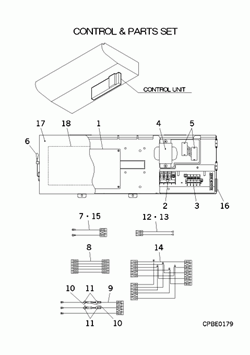

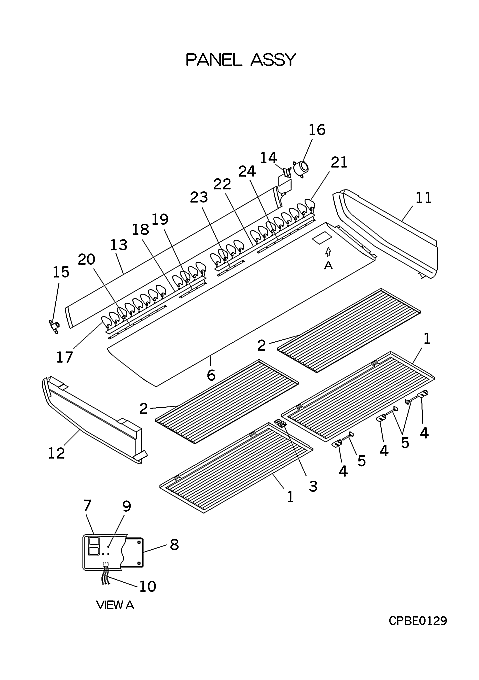

1-16	CONTROL UNIT	PFA501A625LN	1-5	GRILLE ASSY	PFA435A602D
1	PWB ASSY	PJA505A198FY	1	GRILLE,AIR INLET	PFA435A603A
2	BLOCK,TERMINAL	SSA561B702	2	FILTER,AIR	PFA437A601
3	BLOCK,TERMINAL	SSA561B720A	3	STOPPER	PFA129A614A
4	TRANSFORMER	SSA554A487	4	FIXTURE	PFA116A200B
5	CAPACITOR,RUNNING	SSA552A866F	5	SHAFT	PFA129A207
6	SENSOR ASSY	PSA551A008B	6	PANEL,FRONT	PFA122A602D
7	WIRING(TB,XY)	PJF504A006A	7-11	CONTROL ASSY	PFA503A600K
8	WIRING(LM)	PFA504A612B	7	PANEL,ORNAMENT	PFA129A609A
9-11	WIRING(TB,POWER)	PFA504A613G	8	PWB ASSY	PJA505A175B
10	FUSE(CURRENT)	SSA564A116G	9	BUTTON,PUSH	PJA943A700D
11	HOLDER,FUSE	RWC564B002	10	WIRING ASSY	PFA504A620A
12	HARNESS(CF)	PFA504A616A	11	PANEL,SIDE	PFA123A610B
13	HARNESS(CF)	PFA504A616B	12	PANEL,SIDE	PFA123A610C
14	WIRING(FM)	PFA504A621A	13	LOUVER ASSY	PFA436A616A
15	WIRING(TB,XY)	PFA504A617B	14	STOPPER(LOUVER)	PFA129A605
16	GROMMET	S751W25X	15	SUPPORT(L)	PFA129A606
17-18	LID ASSY,CONTROL B	PFA142A606B	16	MOTOR,STEPPING	SSA512T067
18	LABEL,WIRING	PFA011G611	17-20	LOUVER ASSY	PFA436A607B
19	LABEL,MODEL NAME	PFA011F651L	17	LOUVER(V)	PFA436A603
			18	PLATE(LOUVER)	PFA129A613A
			19	PLATE,CONNECTING	PFA129A611A
			20	PLATE,CONNECTING	PFA129A611
			21-24	LOUVER ASSY	PFA436A607C
			21	LOUVER(V)	PFA436A603
			22	PLATE(LOUVER)	PFA129A613B
			23	PLATE,CONNECTING	PFA129A611A
			24	PLATE,CONNECTING	PFA129A611

	Mitsubishi FDEN100VF			Mitsubishi FDEN100VF
	PARTNAME	PARTNUMBER		PARTNAME	PARTNUMBER

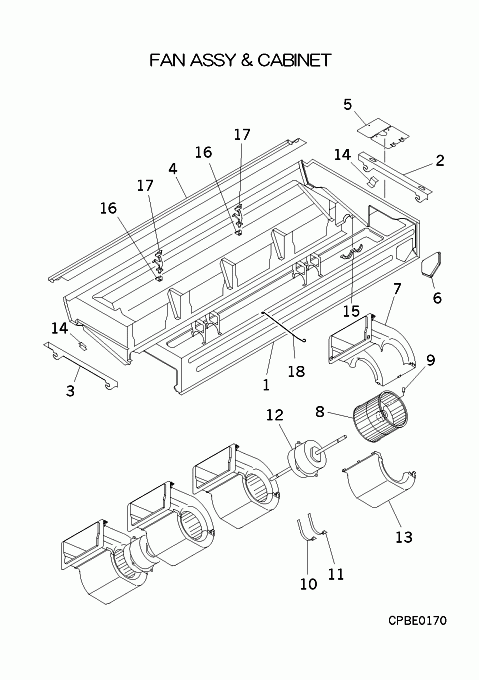

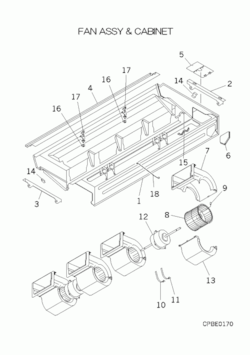

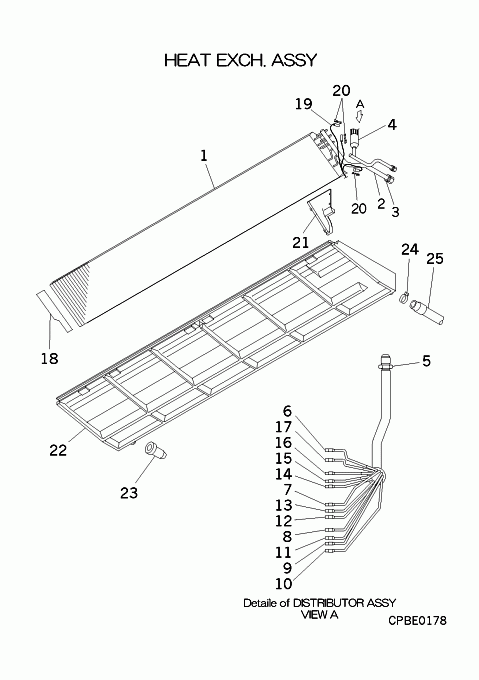

1-6	CABINET ASSY	PFA100A604A	1-10	HEAT EXCH ASSY(AIR	PFA301A611
2	HOLDER	PFA032A600	1	HEAT EXCH(AIR)	PFA311A604B
3	HOLDER	PFA032A600A	2-3	HEADER ASSY,GAS	PFA315D605D
4	PANEL,FRONT(U)	PFA122A604B	3	UNION,SOLDER	SSA323F012J
5	LID	PFA132A603	4-17	DISTRIBUTOR ASSY	PFA315A604A
6	LID(B)	PFA132A601	4	DISTRIBUTOR	PFA315A606B
7	CASING	PFA433B603	5	UNION(SLD)	SSA323F088
8-9	IMPELLER	SSA431D816	6	CAPILLARY	PFA315B707
9	SCREW,SET(SCH-CP)	SSA912F002DF	7	CAPILLARY	PFA315B708
10	BRACKET(MOTOR)	PFA116A207G	8	CAPILLARY	PFA315B709
11	BRACKET(MOTOR)	PFA116A207H	9	CAPILLARY	PFA315B710
12	MOTOR,AC	SSA511T209A	10	CAPILLARY	PFA315B711
13	CASING	PFA433B603A	11	CAPILLARY	PFA315B712
14	BRACKET	PFA116A605A	12	CAPILLARY	PFA315B713
15	LID(PIPE)	PFA116A609	13	CAPILLARY	PFA315B714
16	SUPPORT	PFA129A608	14	CAPILLARY	PFA315B715
17	SUPPORT	PFA129A600	15	CAPILLARY	PFA315B716
18	WIRE	PFA962C600	16	CAPILLARY	PFA315B717
			17	CAPILLARY	PFA315B718
			18	PLATE,BAFFLE	PFA141A609A
			19	SENSOR ASSY(TEMP)	PJF551A002B
			20	SPRING,LEAF	PSA941F001
			21	PLATE,BAFFLE	PFA141A608A
			22-23	PAN ASSY,DRAIN	PFA454A613A
			23	PLUG	SSA326A003F
			24	HOSE CLAMP	V300Y30
			25	HOSE,DRAIN	SSA423A106
