Mitsubishi FDF100VD spareparts

Mitsubishi FDF100VD spareparts

Mitsubishi FDF100VD Mitsubishi FDF100VD

PARTNAME

PARTNUMBER

PARTNAME

PARTNUMBER

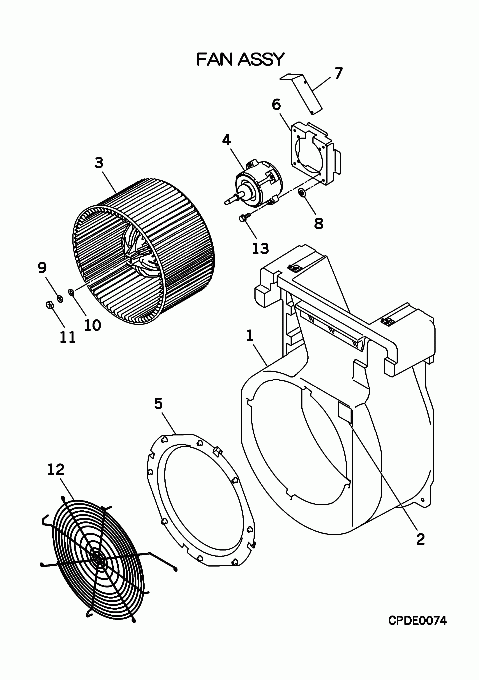

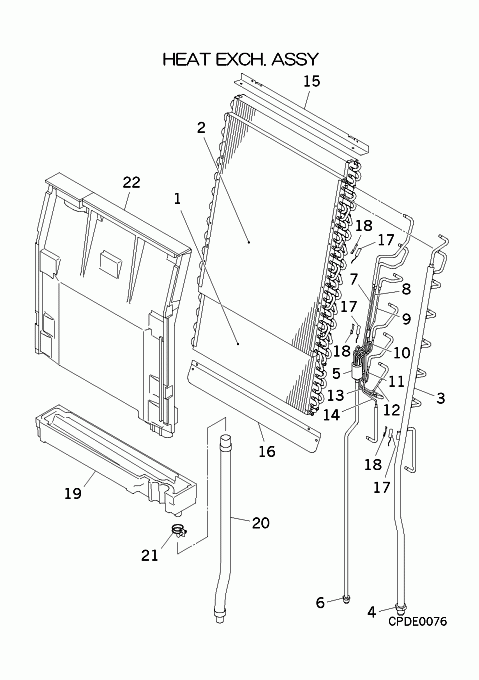

1-18 HEAT EXCH ASSY(AIR  PGA301A403  1 CASING  PGA433B401
1 HEAT EXCH(AIR)  PGA311A400B  2 LABEL,NOTICE  RSA011H005B
2 HEAT EXCH(AIR)  PGA311A402  3 IMPELLER  SSA431D092
3 HEADER,GAS  PGA315D401C  4 MOTOR,DC  SSA512T104
4 UNION,SOLDER  SSA323F012J  5 BELLMOUTH  PGA433A400
5-14 DISTRIBUTOR ASSY  PGA315A403  6 BRACKET(MOTOR)  PGA116A401
5 DISTRIBUTOR  SSA315A036B  7 PLATE ASSY  PGA119A402
6 UNION,SOLDER  SSA323F012A  8 NUT,FLANGE  SSA914C015A
7 CAPILLARY  PGA315B408  9 WASHER,SPG  W220R10
8 CAPILLARY  PGA315B409  10 WASHER,S  W205H10
9 CAPILLARY  PGA315B410  11 NUT  N001A10
10 CAPILLARY  PGA315B411  12 GUARD,FAN  PGA131A400
11 CAPILLARY  PGA315B412  13 BOLT & WASHER,CRS  SSA911D207BB
12 CAPILLARY  PGA315B413
13 CAPILLARY  PGA315B414
14 CAPILLARY  PGA315B415
15 PLATE,BAFFLE  PGA141A400
16 PLATE,BAFFLE  PGA141A401
17 SENSOR ASSY(TEMP)  PSA551A010C
18 SPRING,LEAF  PSA941F001
19 PAN ASSY,DRAIN  PGA454A400
20 HOSE,DRAIN  PSA423A002C
21 HOSE CLAMP  PGA937C001
22 INSULATION(FRONT)  PGA153C404

Mitsubishi FDF100VD spareparts

Mitsubishi FDF100VD spareparts

Mitsubishi FDF100VD Mitsubishi FDF100VD

PARTNAME

PARTNUMBER

PARTNAME

PARTNUMBER

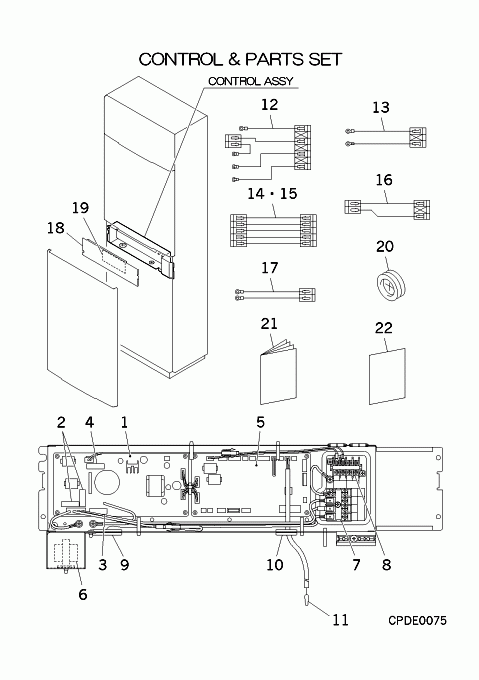

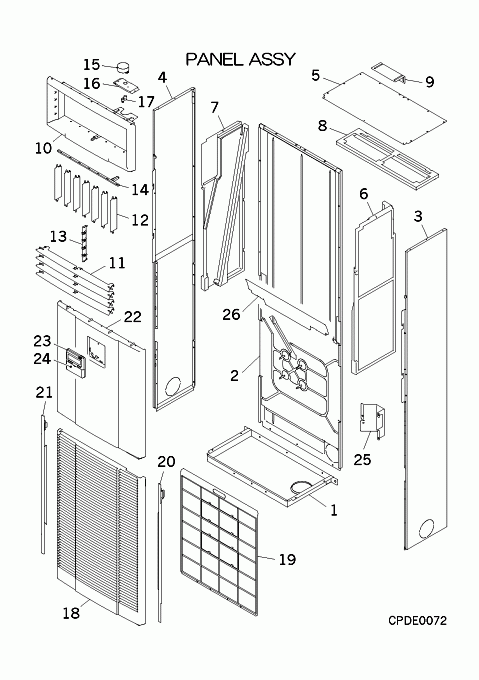

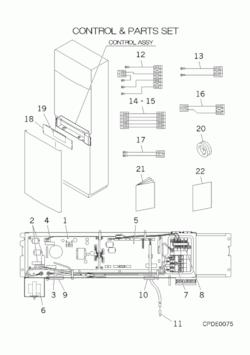

1-17 CONTROL UNIT  PGA501A400BN  1 BASE  PGA111A100A
1-4 PWB ASSY  PJA505A200FB  2 PANEL ASSY,REAR  PGA125A100F
2 FUSE(CURRENT)  SSA564A149AF  3 PANEL ASSY,SIDE  PGY123A001J
3 FUSE(CURRENT)  SSA564A149ZA  4 PANEL ASSY,SIDE  PGY123A001K
4 FUSE(CURRENT)  SSA564A139  5 PANEL,TOP  PGY124A002A
5 PWB ASSY  PJA505A201HA  6 INSULATION (SIDE)  PGA153C400
6 REACTOR  SSA554B101  7 INSULATION (SIDE)  PGA153C400A
7 BLOCK,TERMINAL  SSA561B724  8 INSULATION(TOP)  PGA153C402
8 BLOCK,TERMINAL  SSA561B725  9 PARTS,FIXING  PGA032A002B
9 GROMMET  S751W30X  10-17 LOUVER ASSY,BLOW  PGY436A001A
10 GROMMET  S751W20X  10 PANEL ASSY,FRONT  PGA122A404
11 SENSOR ASSY  PSA551A008AA  11 LOUVER,BLOW(H)  PGY436A002
12 WIRING(TB,POWER)  PGA504A416  12 LOUVER,BLOW(V)  PGY436A003
13 WIRING(TB,XY)  PJF504A006G  13 SUPPORT(LOUVER)  PGY129A001
14 WIRING(PWB)  PJF504A003  14 LINK(LOUVER)  PGY144A003
15 WIRING(PWB)  PJF504A003A  15-17 MOTOR ASSY,LOUVER  PGY511A001A
16 WIRING(LM)  PGA504A413  15 MOTOR,AC  SSY511J002
17 WIRING ASSY  PGA504A407  16 BRACKET  PGA116A402
18-19 LID ASSY,CONTROL  PGA142A404C  17 LINK ASSY  PGA144A400
19 LABEL,WIRING  PGA011G403  18-21 GRILLE ASSY,INLET  PGY435A001
20 GROMMET  SSA947A002S  19 FILTER,AIR  PGY437A001
21 MANUAL,INSTRUCTION  PSA012B735A  20 GUIDE ASSY,FILTER  PGY119A001
22 SHEET,EC DECLARATI  PSA012J010  21 GUIDE ASSY,FILTER  PGY119A001A
23 LABEL,MODEL NAME  PGA011F403L  22-24 PANEL ASSY,CENTER  PGA122A401A
22 PANEL,CENTER  PGA122A402
23-24 CONTROL ASSY,REMOT  PJA502A800AC
24 COVER  PJA129A708
25 COVER  PGA119A401
26 COWLING  PGA433A401
