Mitsubishi FDT71VF Spareparts

info@klimaat-totaal.nl

Contact

+31(0)224850552

Click on drawing to enlarge

Mitsubishi FDT71VF spareparts

Mitsubishi FDT71VF spareparts

Mitsubishi FDT71VF Mitsubishi FDT71VF

PARTNAME

PARTNUMBER

PARTNAME

PARTNUMBER

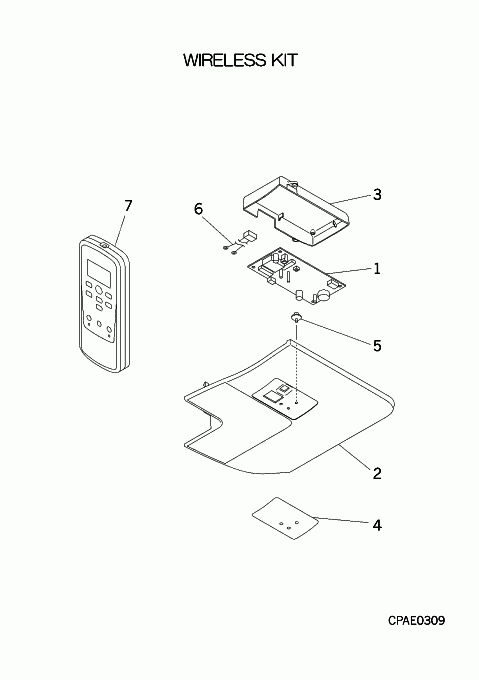

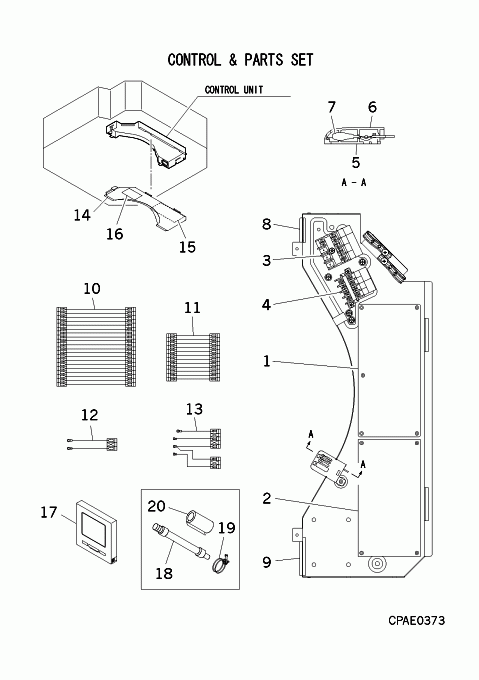

1-13 CONTROL UNIT  PJF501A011CL  1-7 WIRELESS KIT  PJF006A002C
1 PWB ASSY(POWER)  PJA505A230C  1-6 LID ASSY,CORNER  PJF132A008C
2 PWB ASSY(CONTROL)  PJA505A228AD  1 PWB ASSY  PJA505A175
3 BLOCK,TERMINAL  SSA561B702  2 LID ASSY,CORNER  PJF132A009C
4 BLOCK,TERMINAL  SSA561B720A  3 COVER  PJF129A019
5 BASE,HOLDER  PJF129A014  4 SHEET,ORNAMENT  PJA133A751A
6 COVER.HOLDER  PJF129A015  5 BUTTON,PUSH  PJF943A001
7 SENSOR ASSY  PSA551A008B  6 WIRING ASSY  PJF504A013
8 GROMMET  S751W25X  7 CONTROL ASSY,REMOT  PJA502A704AA
9 GROMMET  SSA947B120
10 WIRING(LM)  PJF504A001B
11 WIRING(PWB)  PJG504A001A
12 WIRING(TB,XY)  PJF504A006J
13 WIRING(TB,POWER)  PJF504A036
14 LID,CONTROL BOX  PJF142A006
15 LABEL,WIRING  PJF011G019
16 LABEL,NOTICE  PSA011H032
17 CONTROL ASSY,REMOT  PJZ502A024AB
18-20 PARTS SET  PJF008A001H
18 HOSE,DRAIN  SSA423A101A
19 HOSE CLAMP  V300Y38
20 INSULATION,PIPE  PJA153B008
21 LABEL,MODEL NAME  PJF011F037H

Mitsubishi FDT71VF spareparts

Mitsubishi FDT71VF spareparts

Mitsubishi FDT71VF Mitsubishi FDT71VF

PARTNAME

PARTNUMBER

PARTNAME

PARTNUMBER

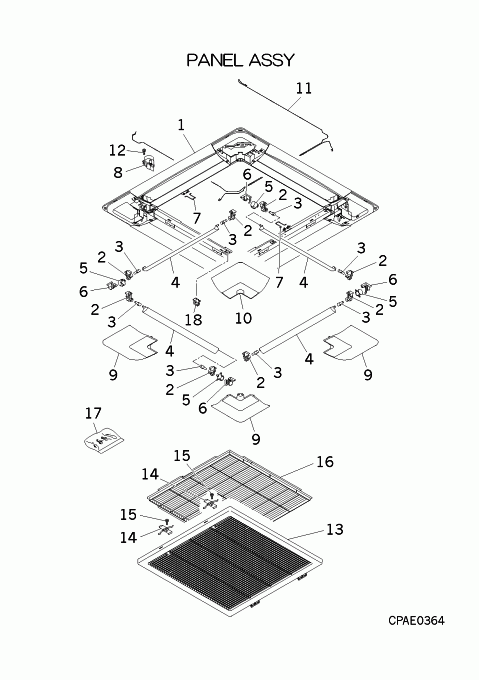

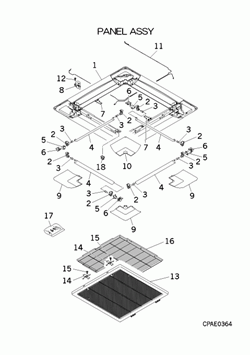

1-18 PANEL ASSY,FRONT  PJF122A009BA  1-3 CABINET ASSY  PJF100A001C
1-12 PANEL ASSY,FRONT  PJF122A005HA  2 HOLDER  PJF032A001
1 PANEL,FRONT  PJF122A006  3 HOLDER  PJF032A001A
2 COLLAR  PJF129A002  4-5 SOCKET ASSY,DRAIN  PJF422C001
3 CRANK  PJF144A001  4 SOCKET  SSA422C107
4 LOUVER,BLOW  PJF436A001  5 HOSE,DRAIN  SSA423A100

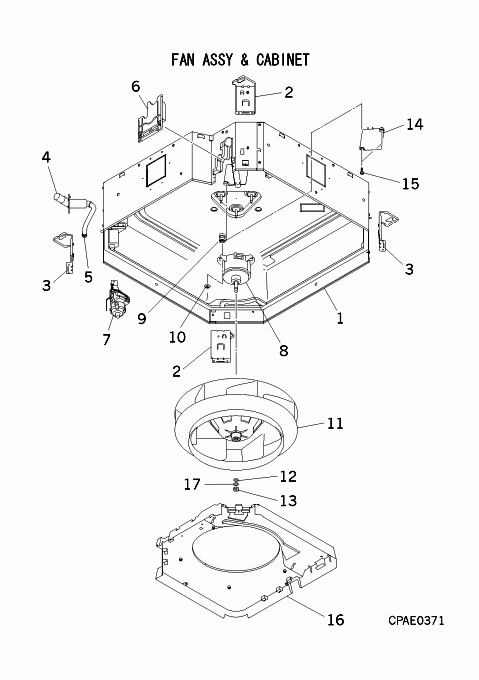

5-6 MOTOR ASSY  PJF512T001  6 LID ASSY  PJF132A006B
5 MOTOR,STEPPING  SSA512T052  7 PUMP ASSY, DRAIN  PJF451A002
6 SUPPORT(MOTOR)  PJF129A003  8 MOTOR,DC  SSA512T116
7 WIRE  PJF962C001  9 CUSHION,RUBBER  SSA941C309
8 COVER ASSY  PJF129A004A  10 NUT,FLANGE  SSA914C015
9 LID ASSY,CORNER  PJF132A001  11 FAN,TURBO  SSA431J021
10 LID ASSY,CORNER  PJF132A001C  12 WASHER,S  W205H10
11 WIRING ASSY  PJF504A014B  13 NUT  N001A10
12 TAP-SCREW,CRS-TRS  W011D04X010  14 PLATE  PJF129A013
13-15 GRILLE ASSY,INLET  PJF435A001D  15 TAP-SCREW,CRS-TRS  W011D04X012
13 GRILLE,AIR INLET  PJF435A003G  16 BELLMOUTH  PJF433A001
14 STOPPER  PJF129A007  17 WASHER,SPG  W220R10
15 TAP-SCREW,CRS-TRS  W011D04X010  18 HOSE,DRAIN  SSA423A101A
16 FILTER,AIR  PJF437A001  19 HOSE CLAMP  V300Y38
17 PARTS SET  PJF006A001K
18 SWITCH ASSY(MICRO)  PJF523J001C

Mitsubishi FDT71VF spareparts

Mitsubishi FDT71VF

PARTNAME

PARTNUMBER

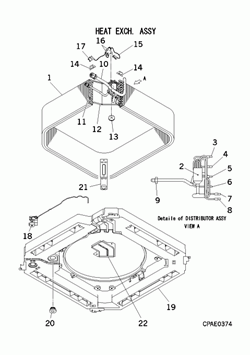

1-17 HEAT EXCH ASSY(AIR  PJF301A013B
1 HEAT EXCH(AIR)  PJF311A003
2-9 DISTRIBUTOR ASSY  PJF315A015
2 DISTRIBUTOR  SSA315A036
3 CAPILLARY  PJF315B007
4 CAPILLARY  PJF315B007A
5 CAPILLARY  PJF315B007B
6 CAPILLARY  PJF315B007C
7 CAPILLARY  PJF315B007D
8 CAPILLARY  PJF315B007F
9 UNION(SLD)  SSA323F088
10-11 HEADER ASSY,GAS  PJF315D008A
11 UNION,SOLDER  SSA323F012C
12-13 PLATE ASSY,BAFFLE  PJF141A001
13 GROMMET  S751W25X
14 BRACKET  PJF116A010
15 SENSOR ASSY(TEMP)  PJF551A002K
16 SPRING,LEAF  PSA941F001
17 SPRING,LEAF  PJF941F002
18 SWITCH ASSY,FLOAT  PJF536A002
19-20 PAN ASSY,DRAIN  PJF454A001G
20 PLUG  SSA326A048
21 BRACKET(HEAT EX)  PJF116A030
22 COVER  PJF142A007
