Mitsubishi FDC71VNXA Spareparts
|
|
| ||||
|---|---|---|---|---|---|
| Mitsubishi FDC71VNXA | Mitsubishi FDC71VNXA | ||||
PARTNAME | PARTNUMBER | PARTNAME | PARTNUMBER | ||

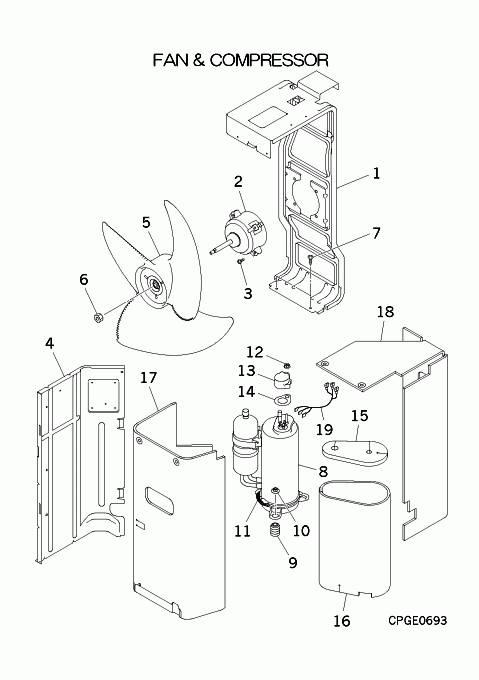

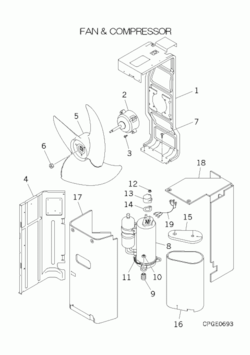

| 1 | BRACKET,MOTOR | RCR116A001 | 1-25 | CONTROL UNIT | PCA501A183CB |
| 2 | MOTOR,DC | SSA512T076K | 1 | PWB ASSY | PCA505A116GC |
| 3 | SCREW,TAP & WASHER | SSA913C031 | 2 | PWB ASSY | PCA505A103ZG |
| 4 | PLATE,BAFFLE | RCR141A001B | 3 | PWB ASSY | PCA505A096D |
| 5 | FAN,PROPELLER | SSA431B256 | 4 | PWB ASSY | PCA505A068D |
| 6 | NUT,TH | SSA914B007AD | 5 | PWB ASSY | PCA505A068C |
| 7 | TAP-SCREW,CRS-TRS | W011D04X008 | 6 | BOX,CONTROL(A) | RPC142A853 |
| 8 | COMPRESSOR ASSY | AHT201C184DA | 7 | BLOCK,TERMINAL | SSA561B665 |
| 9 | CUSHION,RUBBER | SSA941C351A | 8 | FUSE(CURRENT) | SSA564A117 |
| 10 | NUT,FLANGE | SSA914C013A | 9 | HOLDER,FUSE | SSA564B088 |
| 11 | HEATER ASSY(CRANK) | PCA541B016G | 10 | CAPACITOR | SSA552F399C |
| 12 | NUT,FLANGE | SSA914C016 | 11 | SENSOR ASSY | PCA551A032A |
| 13 | COVER,TERMINAL | SSA947K026 | 12 | KILLER,NOISE | SSA554D183 |
| 14 | GASKET,COVER | SSA932C009 | 13 | WIRING ASSY | PCA504A251L |
| 15 | INSULATION,COMP | PCA151D106 | 14 | WIRING ASSY | PCA504A251N |
| 16 | INSULATION,COMP | RPC154D904 | 15 | WIRING ASSY | PCA504A251Y |
| 17 | INSULATION | PCA154D002 | 16 | WIRING ASSY | PCA504A251Z |
| 18 | INSULATION | PCA154D003 | 17 | WIRING ASSY | PCA504A251AA |
| 19 | WIRING ASSY | PCA504A251R | 18 | WIRING ASSY | PCA504A251AC |
| 19 | WIRING ASSY | PCA504A251AD | |||
| 20 | WIRING ASSY | PCA504A251AF | |||
| 21 | WIRING ASSY | PCA504A251P | |||
| 22 | WIRING ASSY | PCA504A251AB | |||
| 23 | LID ASSY,CONTROL | PCA142A153C | |||
| 24 | SENSOR ASSY | PCB551A029F | |||
| 25 | BLOCK,TERMINAL | SSA561B675A | |||
| 26 | LABEL,WIRING | PSC011G566A | |||
| 27 | REACTOR | SSA554B079 | |||
| 28 | SPRING,LEAF | RCJ941F001 | |||
| 29 | SPRING,LEAF | PSA941F001 | |||
| 30 | LABEL,MODEL NAME | PSB011F139A | |||
| 31 | SENSOR ASSY | SSA551A192K | |||
|
| ||||
| Mitsubishi FDC71VNXA | Mitsubishi FDC71VNXA | ||||
PARTNAME | PARTNUMBER | PARTNAME | PARTNUMBER | ||

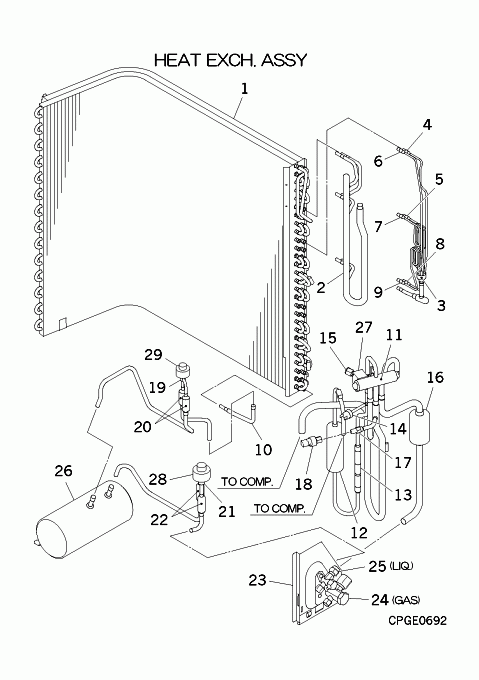

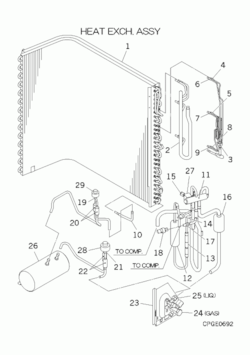

| 1-10 | HEAT EXCH ASSY(AIR | RPC301A901AB | 1 | PANEL ASSY,FRONT | RCR122A001 |
| 1 | HEAT EXCH(AIR) | RPC311A901AB | 2-3 | PANEL ASSY,REAR | RCR125A002C |
| 2 | HEADER ASSY,GAS | RPC315D904AA | 3 | HANDLE | SSA944B031A |
| 3-9 | DISTRIBUTOR ASSY | RPC315A900A | 4-5 | PANEL ASSY,TOP | RCR124A002F |
| 3 | DISTRIBUTOR | RSA315A005 | 5 | LABEL,NOTICE | RSA011H016C |
| 4 | CAPILLARY(1) | RPC315B911 | 6-7 | PANEL ASSY,SERVICE | RCR122A004A |
| 5 | CAPILLARY(2) | RPC315B912 | 6 | PANEL,SERVICE | RCR122A003A |
| 6 | CAPILLARY(4) | RPC315B914 | 7 | HANDLE | SSA944B031A |
| 7 | CAPILLARY(5) | RPC315B915 | 8 | SUPPORT,CORNER | RCR115A001 |
| 8 | CAPILLARY(3) | RPC315B919 | 9 | GRILLE,AIR OUTLET | RCR435A001 |
| 9 | CAPILLARY(6) | RPC315B920 | 10 | COVER ASSY,SERVICE | RCR132A004 |
| 10 | PIPE | RPC321B094 | 11 | GUARD,FIN(A) | RCR131A001 |
| 11 | VALVE,S(4WAY) | SSA382C068 | 12 | GUARD,FIN(B) | RCR131A002 |
| 12 | PIPE,SHELL | PCA325A007 | 13 | COVER,TERMINAL | RCR132A002 |
| 13 | VALVE,CHECK | SSA385A017 | 14 | CUSHION,RUBBER | RCR941G001 |
| 14 | SWITCH,HP | SSA532A083 | 15 | SCREW,TAP | SSA913A034F |
| 15 | VALVE,SERVICE | SSA327B067 | 16 | SCREW,TAP | SSA913A034G |
| 16 | PIPE,SHELL | SSA325A001CG | 17 | BASE ASSY | RCR111A003A |
| 17 | VALVE,SERVICE | SSA327B071C | |||
| 18 | SENSOR,LP | SSA551D022B | |||
| 19-20 | VALVE ASSY,EXP(HEA | PCA387F049 | |||
| 19 | VALVE,BODY(EXP) | SSA387F047 | |||
| 20 | STRAINER | SSA357A005AC | |||
| 21-22 | VALVE ASSY,EXP(COO | PCA387F028 | |||
| 21 | VALVE,BODY(EXP) | SSA387F045A | |||
| 22 | STRAINER | SSA357A005T | |||
| 23 | BRACKET(VALVE) | RCR116A009C | |||
| 24 | VALVE,SERVICE(5/8" | PCA381A062D | |||
| 25 | VALVE,SERVICE(3/8" | PCA381A066C | |||
| 26 | RECEIVER | SSA352B048 | |||
| 27 | COIL ASSY,SOLENOID | PCA382F023A | |||
| 28 | COIL,SOLENOID | SSA382F212S | |||
| 29 | COIL,SOLENOID | SSA382F210M |
