Click on drawing to enlarge

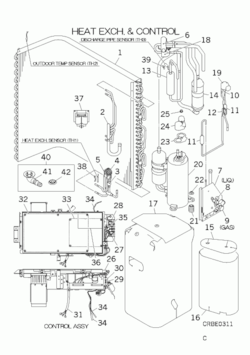

Mitsubishi SRC63ZK-S spareparts

Mitsubishi SRC63ZK-S spareparts

Mitsubishi SRC63ZK-S Mitsubishi SRC63ZK-S

PARTNAME

PARTNUMBER

PARTNAME

PARTNUMBER

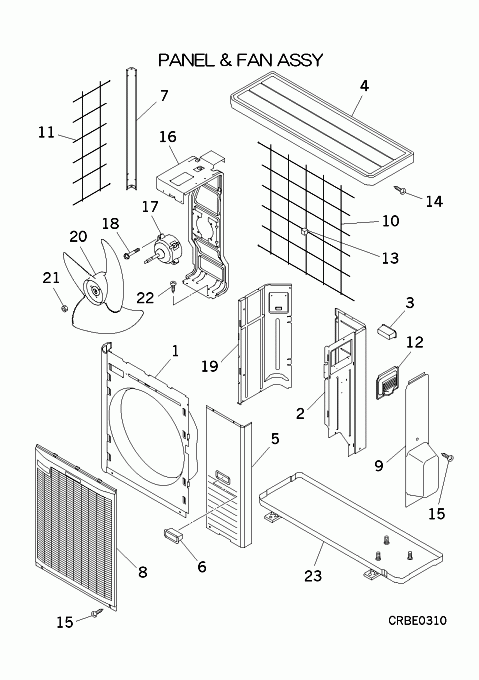

1 PANEL ASSY,FRONT  RCR122A001  1-5 HEAT EXCH ASSY(AIR  RCR301A005
2-3 PANEL ASSY,REAR  RCR125A002C  2 HEADER ASSY,GAS  RCR315D004
3 HANDLE  SSA944B031A  3-5 DISTRIBUTOR ASSY  RCR315A002
4 PANEL ASSY,TOP  RCR124A002  3 DISTRIBUTOR  RSA315A004B
5-6 PANEL ASSY,SERVICE  RCR122A004A  4 CAPILLARY  RCR315B012
5 PANEL,SERVICE  RCR122A006B  5 CAPILLARY  RCR315B013
6 HANDLE  SSA944B031A  6 VALVE,S(4WAY)  SSA382C068
7 SUPPORT,CORNER  RCR115A001  7 BRACKET(VALVE)  RCR116A003
8 GRILLE,AIR OUTLET  RCR435A001  8 VALVE,SERVICE(1/4"  RCR381A003
9 COVER ASSY,SERVICE  RCR132A004  9 VALVE,SERVICE(5/8"  RCR381A004
10 GUARD,FIN(A)  RCR131A001  10-12 PIPING ASSY(EXPAN)  RCR304A008A
11 GUARD,FIN(B)  RCR131A002  10 VALVE,BODY(EXP)  SSA387F052
12 COVER,TERMINAL  RCR132A002  11 STRAINER  SSA357A005A
13 CUSHION,RUBBER  RCR941G001  12 CAPILLARY,SUB  RCP315B002
14 SCREW,TAP  SSA913A034F  13 PIPE,SHELL  PCA325A007
15 SCREW,TAP  SSA913A034G  14 ACCUMULATOR ASSY  AHT351A001
16 BRACKET,MOTOR  RCR116A001  15 INSULATION,COMP  RPC154D903
17 MOTOR,DC  SSA512T076J  16 INSULATION,COMP  RPC154D904
18 SCREW,TAP  SSA913B038  17 INSULATION  RCR154D005
19 PLATE,BAFFLE  RCR141A001  18 COIL ASSY,SOLENOID  RPC382F900
20 FAN,PROPELLER  SSA431B256  19 COIL,SOLENOID  SSA382F210L
21 NUT,TH  SSA914B007AD  20 COMPRESSOR ASSY  AHT201C184DA
22 TAP-SCREW,CRS-TRS  W011D04X008  21 CUSHION,RUBBER  SSA941C351A
23 BASE ASSY  RCR111A003D  22 NUT,FLANGE  SSA914C013A
23 GASKET,COVER  RSA932C004
24 COVER,TERMINAL  RSA947K005
25 NUT,FLANGE  SSA914C016
26 BOX,CONTROL(A)  RPC142A902
27 BLOCK,TERMINAL  SSA561B665
28 BLOCK,TERMINAL  SSA561B702B
29 FUSE(CURRENT)  SSA564A136A
30 HOLDER,FUSE  SSA564B088
31 WIRING ASSY  RPC504A912A
32 PWB ASSY(MAIN)  RCT505A005DA
33 PWB ASSY(SUB)  RCT505A004D
34 SENSOR ASSY  SSA551A233
35 CORE,FERRITE  SSA554D173
36 LABEL,WIRING  RCR011G004
37 REACTOR  SSA554B089
38 SPRING,LEAF  RKJ941F001A
39 SPRING,LEAF  RCJ941F001
40 PARTS,STANDARD(B)  RPC008A601
41 ELBOW  SSA422A024
42 GROMMET  SSA947A089
43 LABEL,MODEL NAME  RCR011F005
