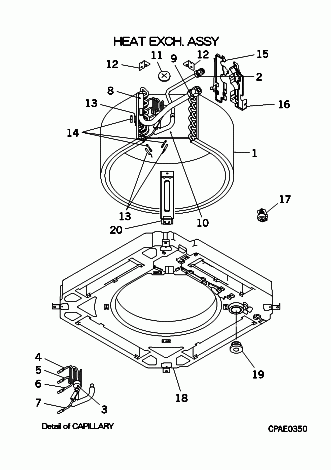

Mitsubishi FDTC25VF	Mitsubishi FDTC25VF
PARTS. NO.:	PARTS. NO.:

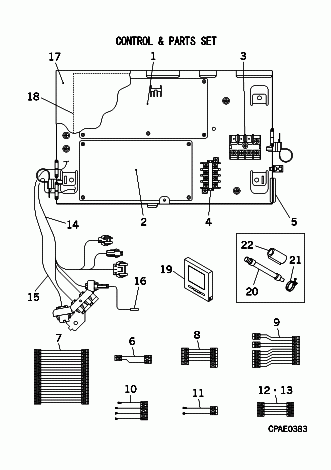

1. CABINET ASSY PJA100A780	1. CONTROL UNIT PJA501A785BB
2. HOLDER PJA032A780	2. PWB ASSY PJA505A200CA
3. HOLDER PJA032A780A	3. PWB PJA505A201LB
4. GROMMET S751W25X	4. BLOCK,TERMINAL SSA561B702
5.SOCKET DRAIN PJF422C001	5. BLOCK,TERMINAL SSA561B720A
6. SOCKET SSA422C107	6. GROMMET S751W25X
7. HOSE,DRAIN SSA423A100	7. WIRING(DM) PJA504A762A
8. PUMP DRAIN PJA451A780	8. WIRING(LM) PJF504A001A
9. MOTOR,DC SSA512T095A	9. WIRING(FM) PJA504A763
10. CUSHION SSA941C309	10. WIRING PJA504A764A
11. NUT,FLANGE SSA914C015	11. WIRING PJF504A007A
12. FAN,TURBO SSA431J024	12. WIRING(TB,XY) PJF504A006D
13. WASHER,S W205H10	13. WIRING(PWB) PJF504A003B
14. NUT N001A10	14. WIRING(PWB) PJF504A003C
15. BELLMOUTH PJA433A780	15. HARNESS PJA504A773C
16. WASHER,SPG W220R10	16. HARNESS PJA504A753A
17. PLATE PJA129A780	17. SENSOR(TEMP.) PJA551A010Z
18. HOSE,DRAIN SSA423A101	18. LID,CONT.BOX PJA142A781
19. HOSE CLAMP V300Y38	19. LABEL,WIRING PJA011G783
	20. CONTROL REMOTE PJZ502A024AB
	21. PARTS SET PJF008A001G
	22. HOSE,DRAIN SSA423A101
	23. HOSE CLAMP V300Y38
	24. INSULATION,PIPE PJA153B007
	25. LABEL,MODEL RWA011F010D

Mitsubishi FDTC25VF	Mitsubishi FDTC25VF
PARTS. NO.:	PARTS. NO.:

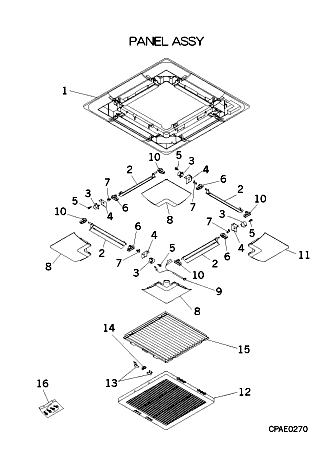

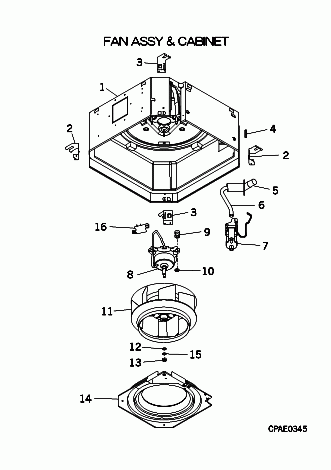

1. PANEL FRONT PJA122A750D	1. CABINET ASSY PJA100A780
2. PANEL FRONT PJA122A751D	2. HOLDER PJA032A780
3. PANEL,FRONT PJA122A752	3. HOLDER PJA032A780A
4. LOUVER BLOW PJA436A750	4. GROMMET S751W25X
5. LOUVER,BLOW PJA436A751	5. SOCKET DRAIN PJF422C001
6. MOTOR PJA512T750	6. SOCKET SSA422C107
7. MOTOR,STEP SSA512T052	7. HOSE,DRAIN SSA423A100
8. BRACKET PJA116A756	8. PUMP DRAIN PJA451A780
9. TAP-SCREW W006D04X008	9. MOTOR,DC SSA512T095A
10. CLAMP PJA129A750	10. CUSHION,RUB SSA941C309
11. CRANK(A) PJA144A750	11. NUT,FLANGE SSA914C015
12. LID CORNER PJA132A753	12. FAN,TURBO SSA431J024
13. WIRING PJF504A014A	13. WASHER,S W205H10
14. CLAMP PJA129A750	14. NUT N001A10
15. LID CORNER PJA132A753A	15. BELLMOUTH PJA433A780
16. GRILLE INLET PJA435A750	16. WASHER,SPG W220R10
17. STOPPER,G PJA129A753	17. PLATE PJA129A780
18. STOPPER,F PJA129A755	18. HOSE,DRAIN SSA423A101
19. FILTER,AIR PJA437A750	19. HOSE CLAMP V300Y38
20. PARTS SET PJA006A750
